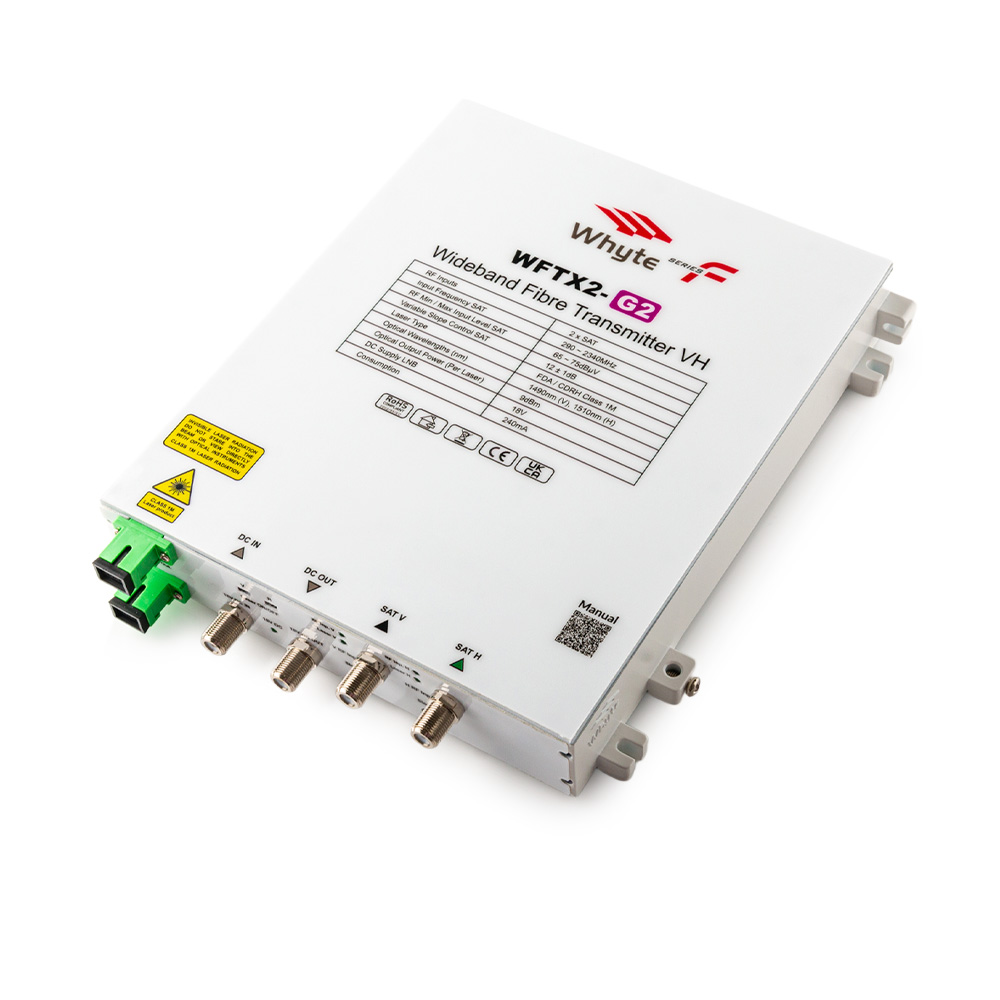

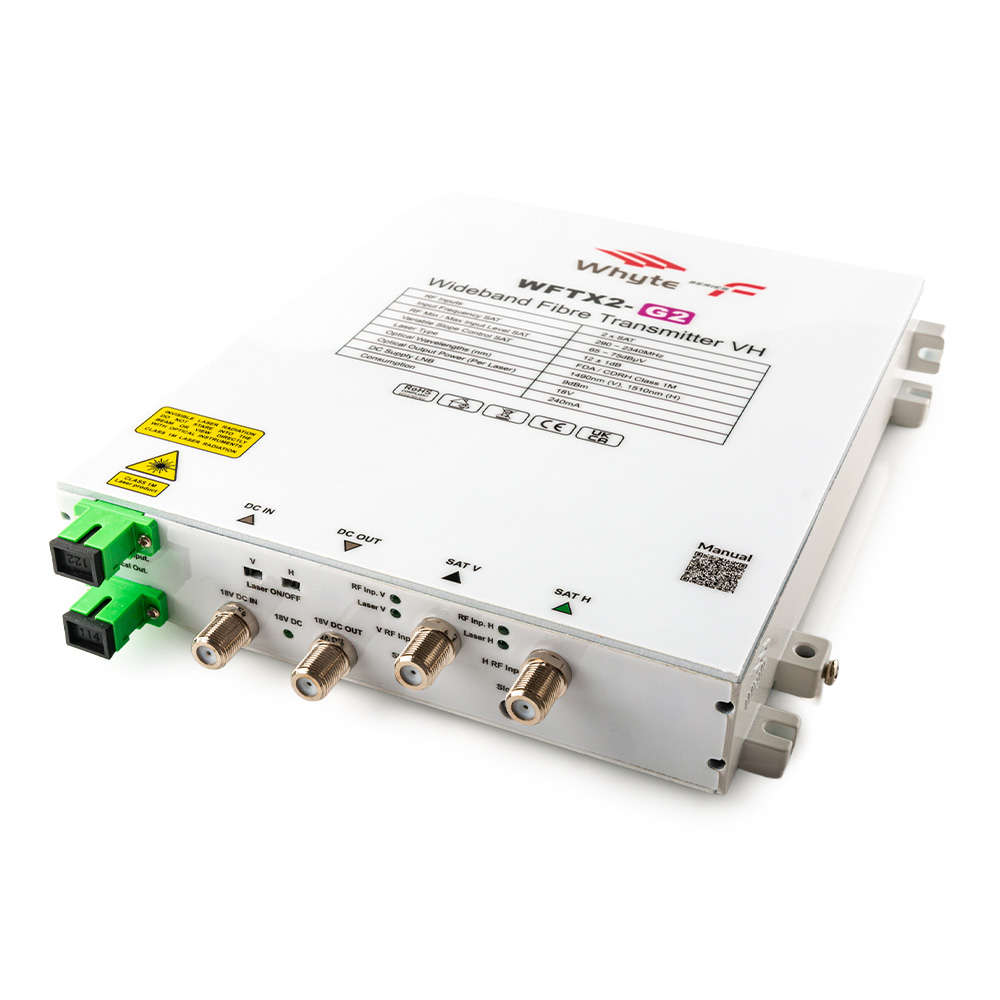

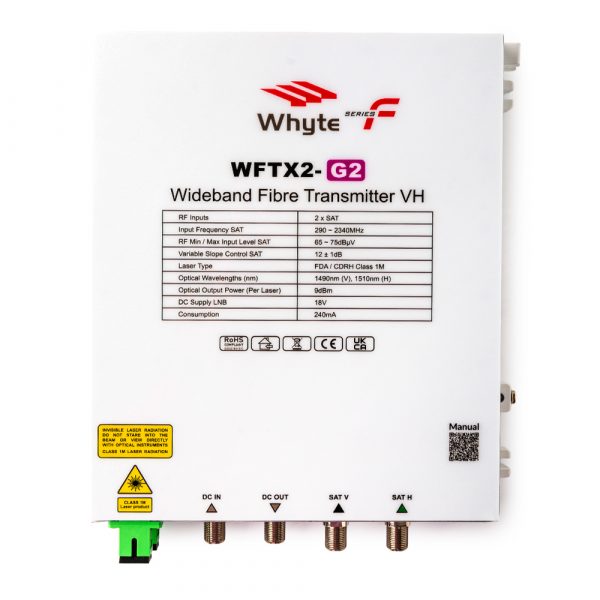

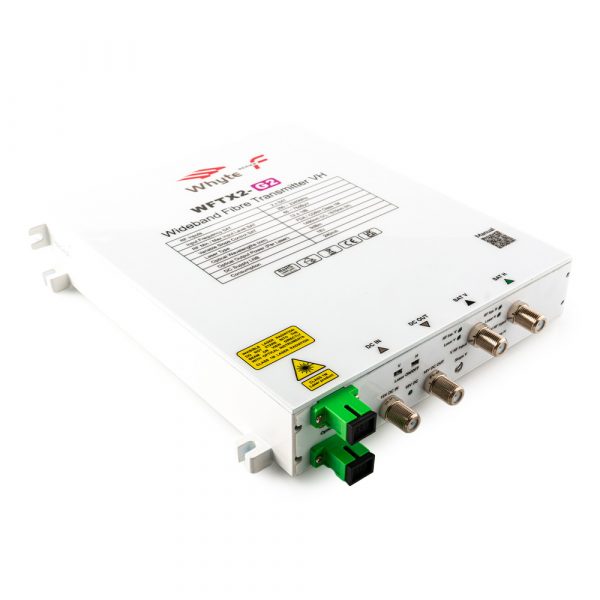

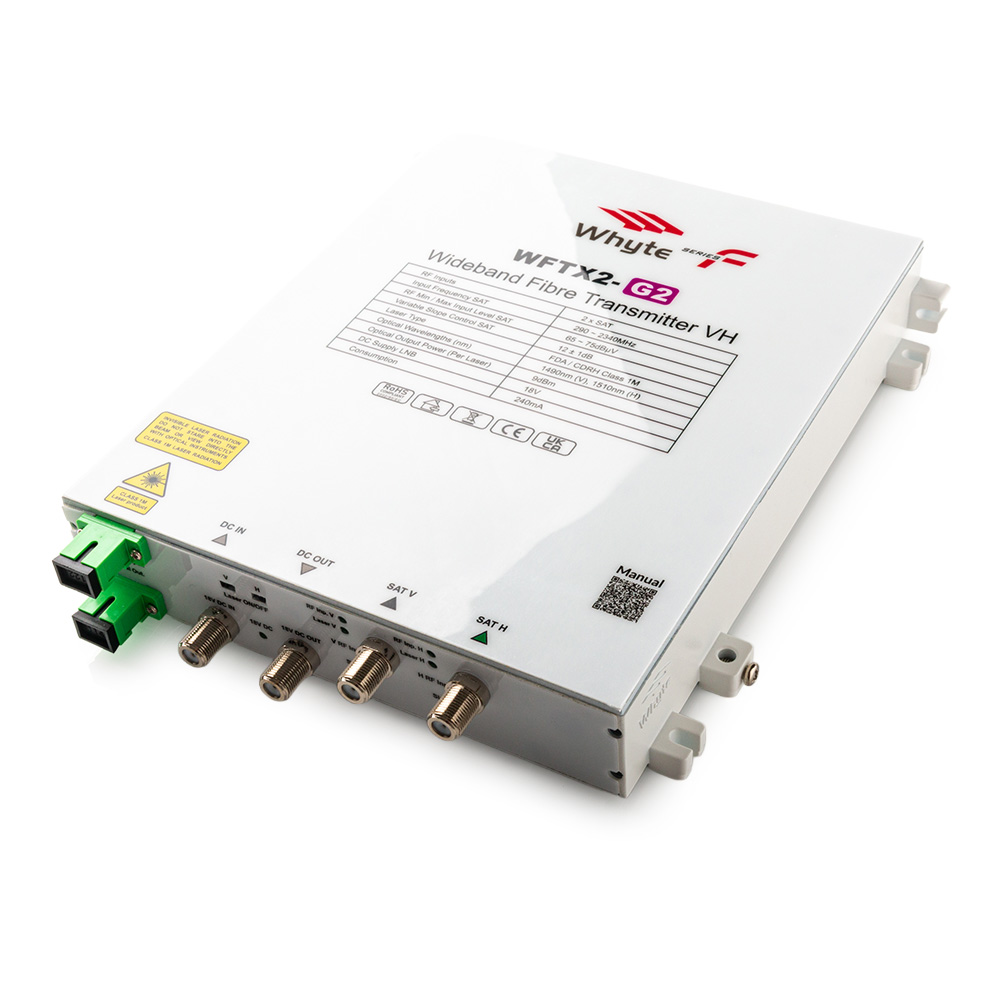

The WFTX2-G2 is a Wideband SAT only over Optical transmitter module designed for use in Whyte RF Over Fibre IRS systems. The WFTX2-G2 Features: Two Laser modules, SC APC Optical Input, SC APC Optical Output, Vertical and Horizontal RF Input, DC in and DC Output, Laser On/Off switches (V & H) and Variable Slope Control (V and H).

This is a two-laser CWDM device featuring an optical loop-through so that the WFTX3-G1 and WFTX2-G2 can be linked together enabling two satellites (Wideband) and terrestrial to be sent over one fibre using five laser frequencies, or one Quattro SAT + TERR (also over a single fibre).

Download PDF Instruction Manual
