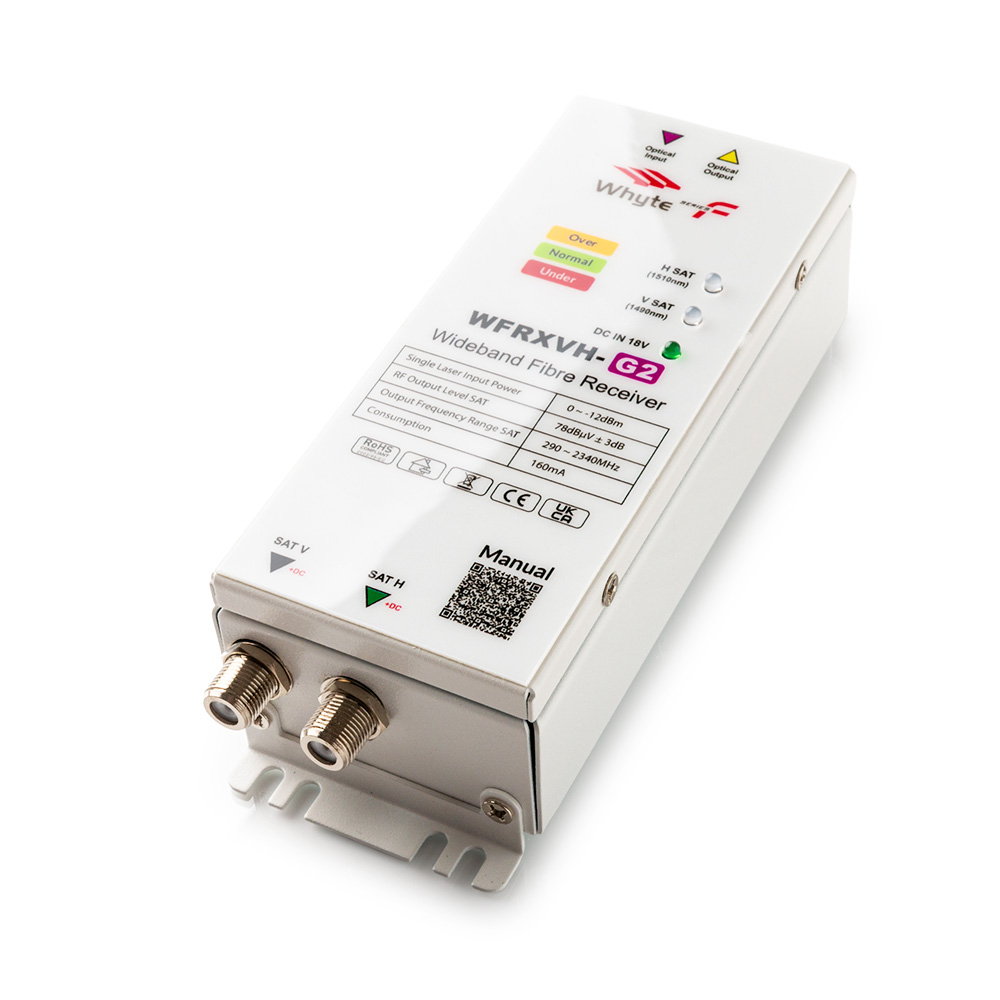

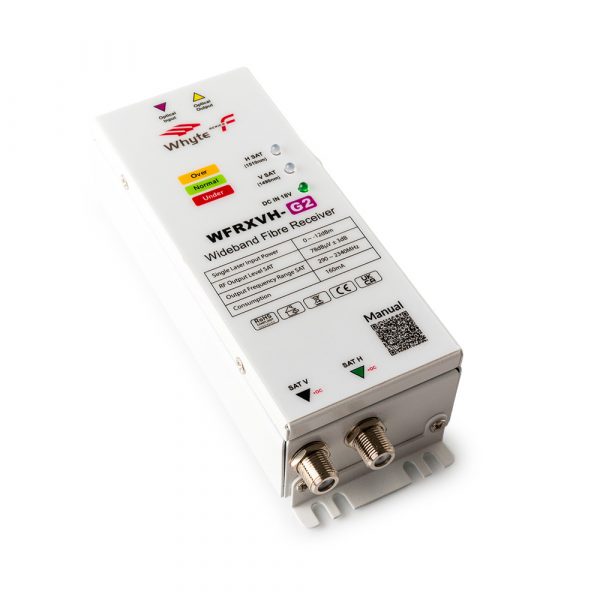

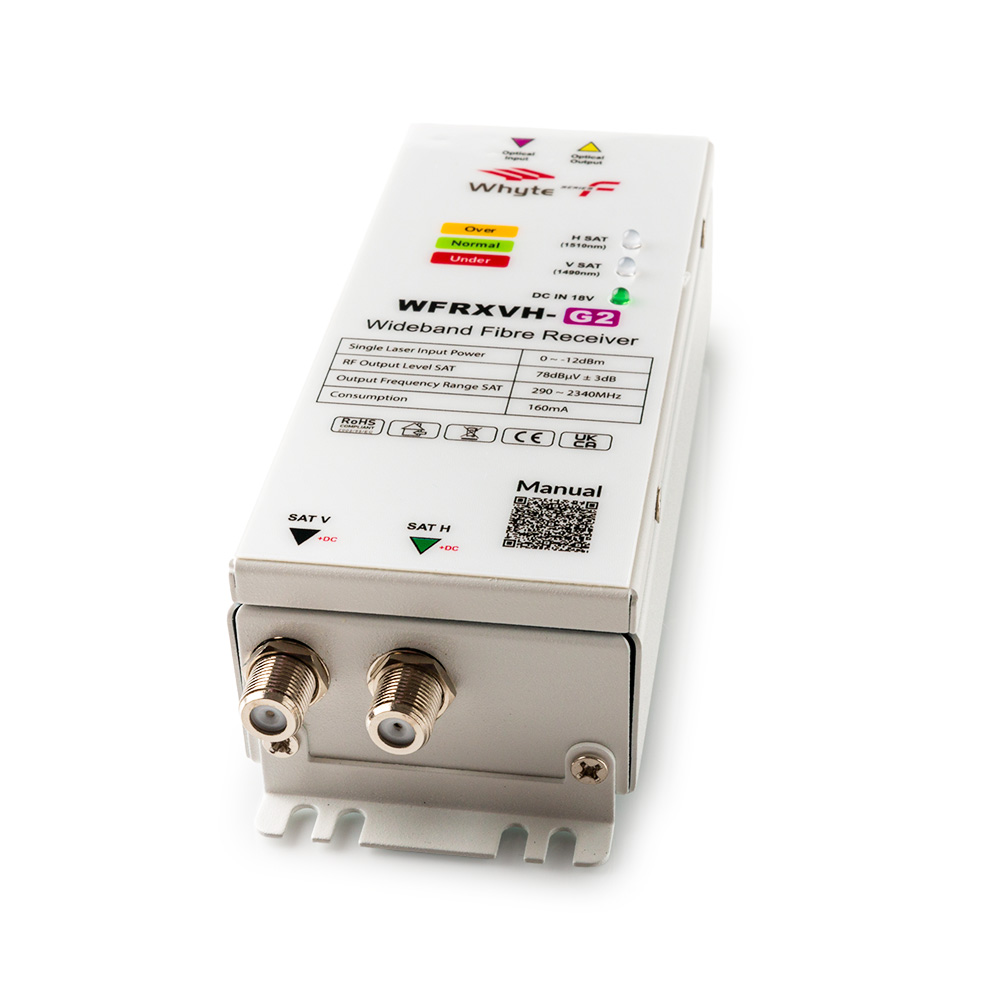

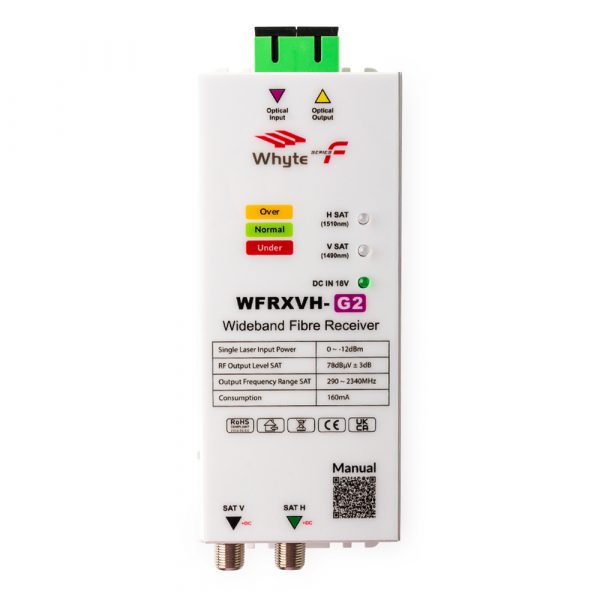

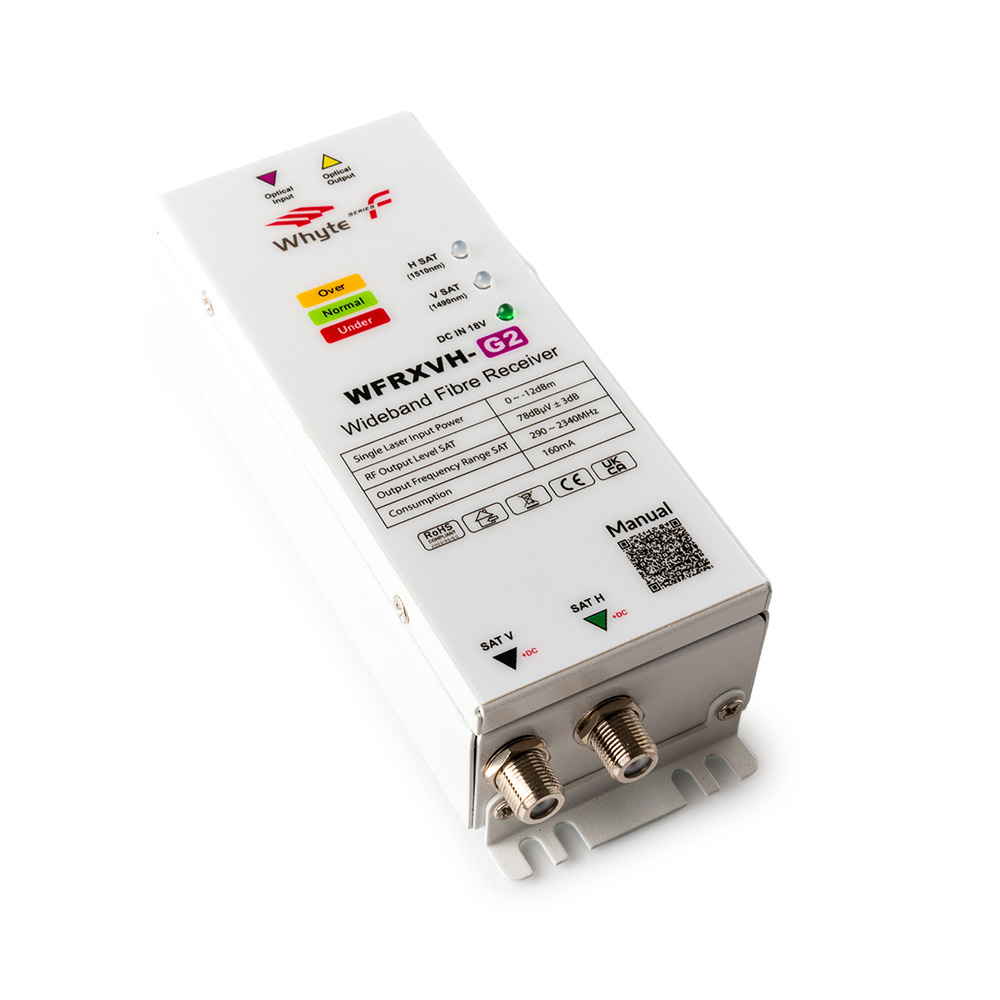

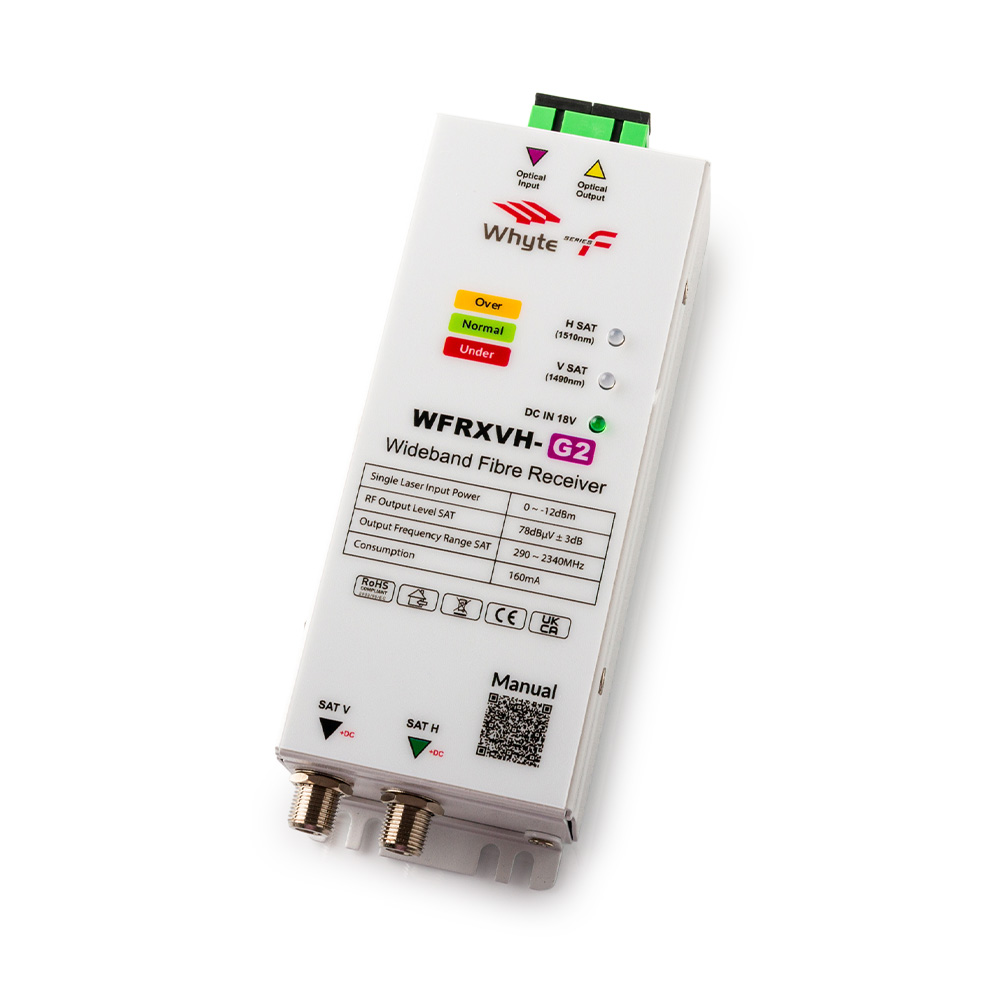

WFRXVHT-G1 and WFRXVH-G2 are Wideband Optical Receivers from the Whyte Series F Range. When used with a Whyte Optical Transmitter, signal degradation between the RF source (the LNB) and the Wideband Optical Receiver is a mere 0.2dB MER. A Tri-colour LED indicator per laser wavelength indicates the optical input status of the receiver.
The Whyte Series F wideband receivers connect directly to all Whyte Series D dSCR Multiswitches and Series 5WB Amplifiers, Taps and Splitters providing a convenient, compact, and robust solution. These wideband fibre receivers are line powered via the SAT outputs.
The WFRXVHT-G1 and WFRXVH-G2 receivers can be linked together (loop-through) enabling two satellites (Wideband) and terrestrial to be received over one fibre using five laser wavelengths, or one Quattro SAT + TERR (also over a single fibre).
This configuration requires two Whyte Optical Transmitters that are also interconnected via the Optical Loop-through.
