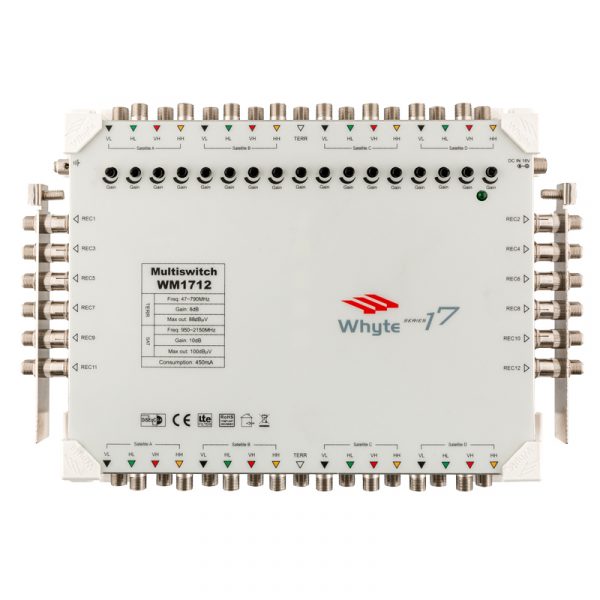

WM1712

17-Wire 12-Way Multiswitch
(WM1712)

Key Features

  • 4 Years Warranty
  • Gain Control on all inputs
  • Comes with Earth Bars fitted
  • SAT gain 10dB / TERR gain 8dB
  • Colour coded inputs and outputs
  • LED Power Indicator & 4G LTE filter
  • Line Powered Cascading Multiswitch
  • Switchable 12V DC Supply to Terrestrial input
  • Uses receiver power to reduce demands on PSU
  • Use as standalone when powered with a Whyte PSU
  • Separate SAT & TERR Pro-Taps™ for ease of installation
  • Comes with 17 F-Type couplers for easy connection to Series 17 range

Login to see prices

SKU 10023 Category Tag Brand:

17-Wire 12-Way Multiswitch (WM1712)

Whyte Series 17 is a range of 17 wire Cascading Multiswitches that combines up to 4 different satellites and Terrestrial TV/Radio.

Series 17 Multiswitches can be used as Standalone Multiswitches when powered directly via the 18V Auxiliary input by using a Whyte 2.5A Power Supply Unit (model WPSU-2.5A).



Download PDF Instruction Manual

Download PDF Instruction Manual

Weight 1738 g
Dimensions 205 × 340 × 43 mm
