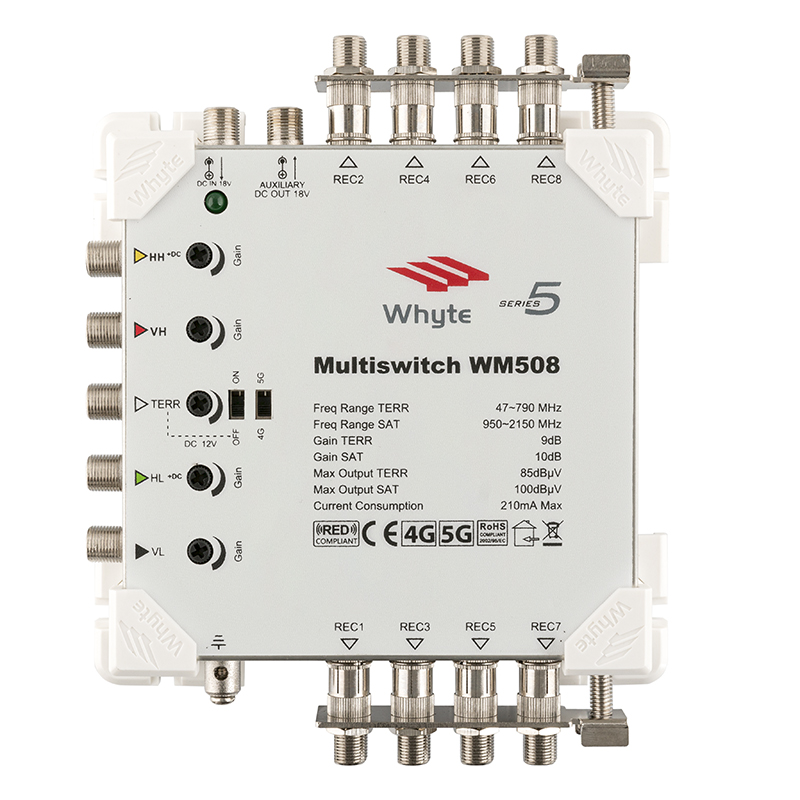

Whyte Series 5 WM508 Multiswitch

The Whyte Series 5 Multiswitch range is designed to be universally flexible and can be used in small, medium and large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as a standalone Multiswitch when powered directly via the 18V Auxiliary Input by using the Whyte 0.8A Power Supply Unit (model WPSU-0.8A).

Inbuilt LTE filter
LED power indicator
Line Powered Multiswitch
Gain Control on all inputs
Comes with Earth Bars fitted
SAT gain 10dB / TERR gain 8dB
Colour coded inputs and outputs
Use as standalone when powered with a Whyte PSU
Uses the receiver power to reduce demands on system PSU
Adequate clearance to route cables under the Multiswitch
Use Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS Systems

Specifications

Frequency Range:	SAT 950-2150MHz \| TERR 87-790MHz
4G/5G Switch:	YES
Input (F-Type Female):	4 SAT + 1 TERR
Tap Outputs (F-Type Female):	8
Gain:	SAT: ≥10dB \| TERR:≥8dB
Gain Control:	SAT 11dB±2dB \| TERR 11dB±2dB
Return Loss SAT Trunk Input/Output:	SAT >10dB/>10dB TERR >8dB/8dB
Return Loss Tap Output:	>8dB
Max Output Level:	SAT (IMA³ -35dB) 100dBμV TERR (IMA³ -60dB) >85dBμV
Isolation:	Trunk - Trunk >33dB Cross Polar: ≥25dB Tap-Tap SAT >30dB Tap-Tap TERR >30dB Rejection ≥25dB
Impedance:	75 Ohms
Switching Commands:	Legacy 13/18V / 22kHz Tone
Power Supply Voltage:	18V DC
Powering:	Via DC Input / Via HL and HH Input
Auxiliary DC Output (F-Type Female:	YES
Power Consumption (Max)@18V:	210mA
Masthead Power Supply (Switchable):	TERR Input Only 12V DC 100mA
Earth Terminal Bars (Tap Outputs):	Fitted
Earth Lug:	Up to 6mm² Core
Dimensions Incuding Earth Bars (mm):	150 x 182 x 43
Weight:	674g
